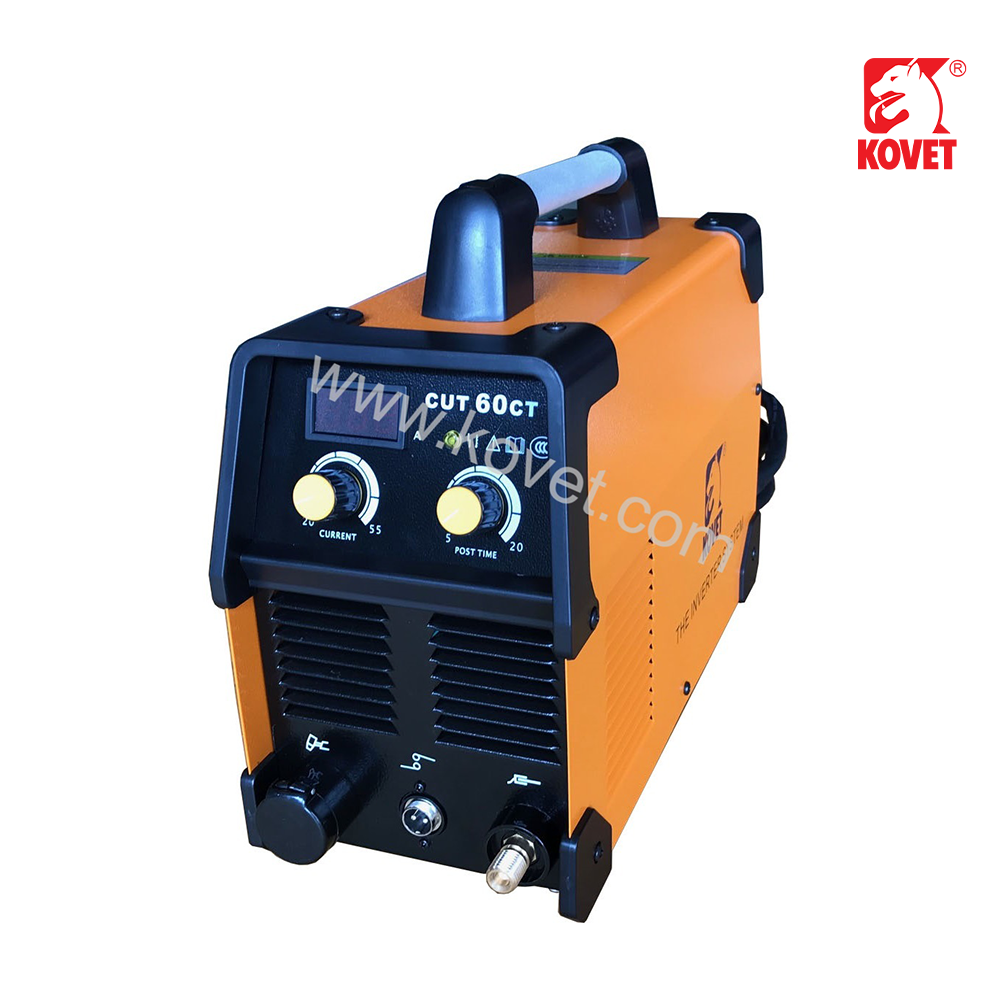

Inverter Air Plasma Cutting Machine #CUT-60CT
In stock
SKU:
WM04-CUT60CT
- This inverter air plasma cutting machine employs advanced technology to maximize thermal dissipation with 4 separated heat sinks.
- Quality cut up to 10mm thickness carbon steel, max cut up to 16mm thickness carbon steel.
- Post-flow adjustable
- Easy arc ignition with high frequency.
- Smooth and neat cutting surface.
| Brands | KOVET |
|---|---|
| Rate Primary Voltage | AC220V (1 phase), ±15%, 50/60Hz |
| Arc-starting type | HF, touch |
| Rated Input Capacity (KVA) | 9.1 |
| Maximum Input Current (A) | 41.5 |
| Rated input current (A) | 22.7 |
| Output Current Range (A) | 20 – 55 |
| Output Voltage (V) | 88 – 102 |
| Max No-Load voltage (V) | 300 |
| Pressure (bar) | 4 – 5.5 |
| Rate duty cycle at 30% (10min) | 55A 102V |
| Rate duty cycle at 100% (10min) | 35A 94V |
| Efficiency (%) | 80 |
| Power Factor | 0.79 |
| Insulation grade | F |
| Protection Class | IP21 |
| Max cutting thickness (mm) | 20 |
| Material thickness (mm) | 1 – 5 |
| Weight (kg) | 8 |
| Dimension (LxWxH) (mm) | 402 x 160 x 300 |
| Cable Length (m.) | 3 |
