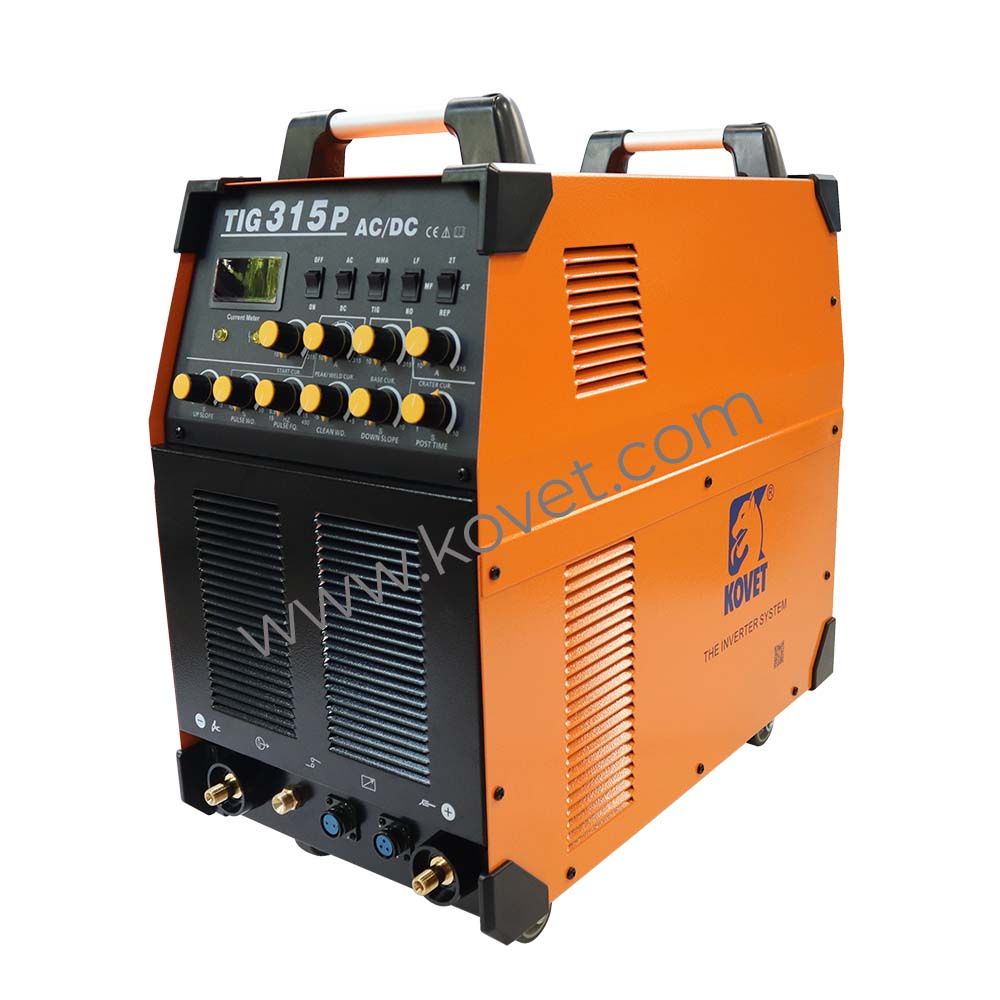

Digital DC TIG (GTAW) Welding Machine #TIG315PAC/DC
In stock
SKU:
WM04-TIG315PACDC
- Suitable for BAS & RUT electrodes welding
- Hot arc starting current enjoys stepless adjustment and 100% arc starting success rate
- The continuously adjustable arc force in MMA mode provides effects of anti stick, unbroken arc and ensures stable arc for long cable welding
- The current and voltage enjoy digital display
- Wired remote control and optional wireless control
- Protection against overheat, over-current and over-voltage
- Optional VRD function
- Welding cable can reach as long as 100m
- Efficiency can reach up to 89%
| Brands | KOVET |
|---|---|
| Rate Primary Voltage | AC220V (1 phase), ±15%, 50/60Hz |
| Rated Input Capacity (KVA) | 11.4 |
| Maximum Input Current (A) | TIG : 17.2 MMA : 15.5 |
| Rated input current (A) | TIG : 21.1 MMA : 13.8 |
| Output Current Range (A) | TIG : 12 - 300 MMA : 15 - 240 |
| Output Voltage (V) | TIG : 10.5 - 22 MMA : 20.6 - 29.6 |
| Max No-Load voltage (V) | TIG : 62 MMA : 62 |
| Rate duty cycle at 30% (10min) | TIG : 300A 22V MMA : - |
| Rate duty cycle at 60% (10min) | TIG : 260A 20.4V MMA : 240A 29.6V |
| Rate duty cycle at 100% (10min) | TIG : 230A 19.2V MMA : 220A 28.8V |
| Wire Pulse (%) | 10 - 90 |
| Efficiency (%) | 85 |
| Power Factor | 0.93 |
| Insulation grade | F |
| Protection Class | IP21S |
| Electrode/ Wire/ Rod diameter (mm) | 1.6 – 4.0 |
| Material thickness (mm) | < 8 |
| Weight (kg) | 11.5 |
| Dimension (LxWxH) (mm) | 609 x 340 x 402 |
| Cable Length (m.) | 3 |
