$1,670.40

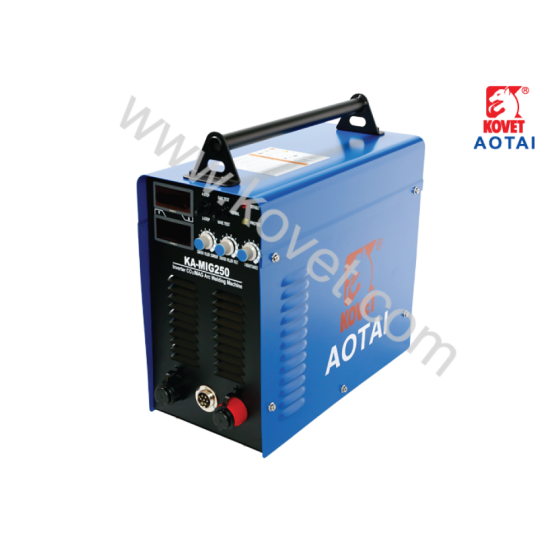

Inverter CO2 MAG (GMAW) Welding Machine #KA-MIG250
In stock
SKU:
WM02-MIG250
- Low welding distortion, pretty weld formation, high welding deposit rate
- Easy arc starting with slow wire feeding
- Stopping arc procedure has reducing melting ball feature
- Less spatter due to the advanced wave with wide range
- Can weld continuously for long time with high duty cycle
- Digital display for accurate parameter preset, easy to operate
- Use for solid / flux-cored welding wire
- Recommended application: Industry plant construction, Containers manufacturing, Machinery industry, Shipbuilding and offshore engineering, Metal work production and repairs.
- Recommended base metals: Carbon steel, Alloy steel
- Mild steel welding capability: 0.8 - 15mm/0.03-0.59”, 15-34V at 40-350A
| Brands | KOVET |
|---|---|
| Rate Primary Voltage | AC380V (3 phase), ±10%, 50/60Hz |
| Rated Input Capacity (KVA) | 8 |
| Maximum Input Current (A) | 16 |
| Rated input current (A) | 10 |
| Output Current Range (A) | 42 - 250 |
| Output Voltage (V) | 16 - 29 |
| Max No-Load voltage (V) | 51 |
| Rate duty cycle at 35% (10min) | 300A 29V |
| Rate duty cycle at 60% (10min) | 250A 26.5V |
| Rate duty cycle at 100% (10min) | 193A 23.7V |
| Efficiency (%) | ≥ 89 |
| Power Factor | ≥ 0.95 |
| Insulation grade | H |
| Protection Class | IP21S |
| Electrode/ Wire/ Rod diameter (mm) | 0.8 - 1.0 |
| Weight (kg) | 20 |
| Dimension (LxWxH) (mm) | 495 x 232 x 371 |
| Cable Length (m.) | 3 |
