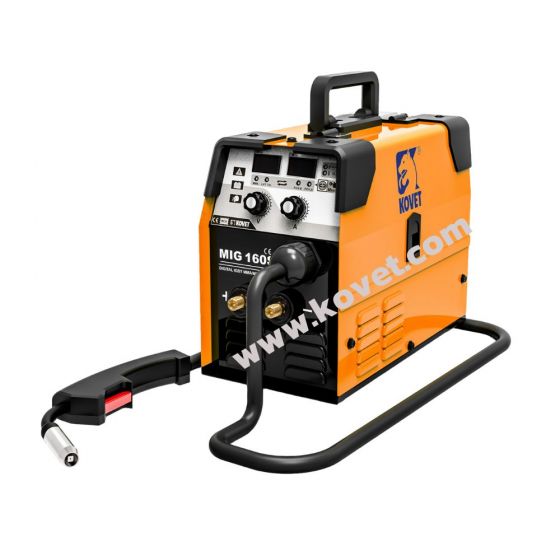

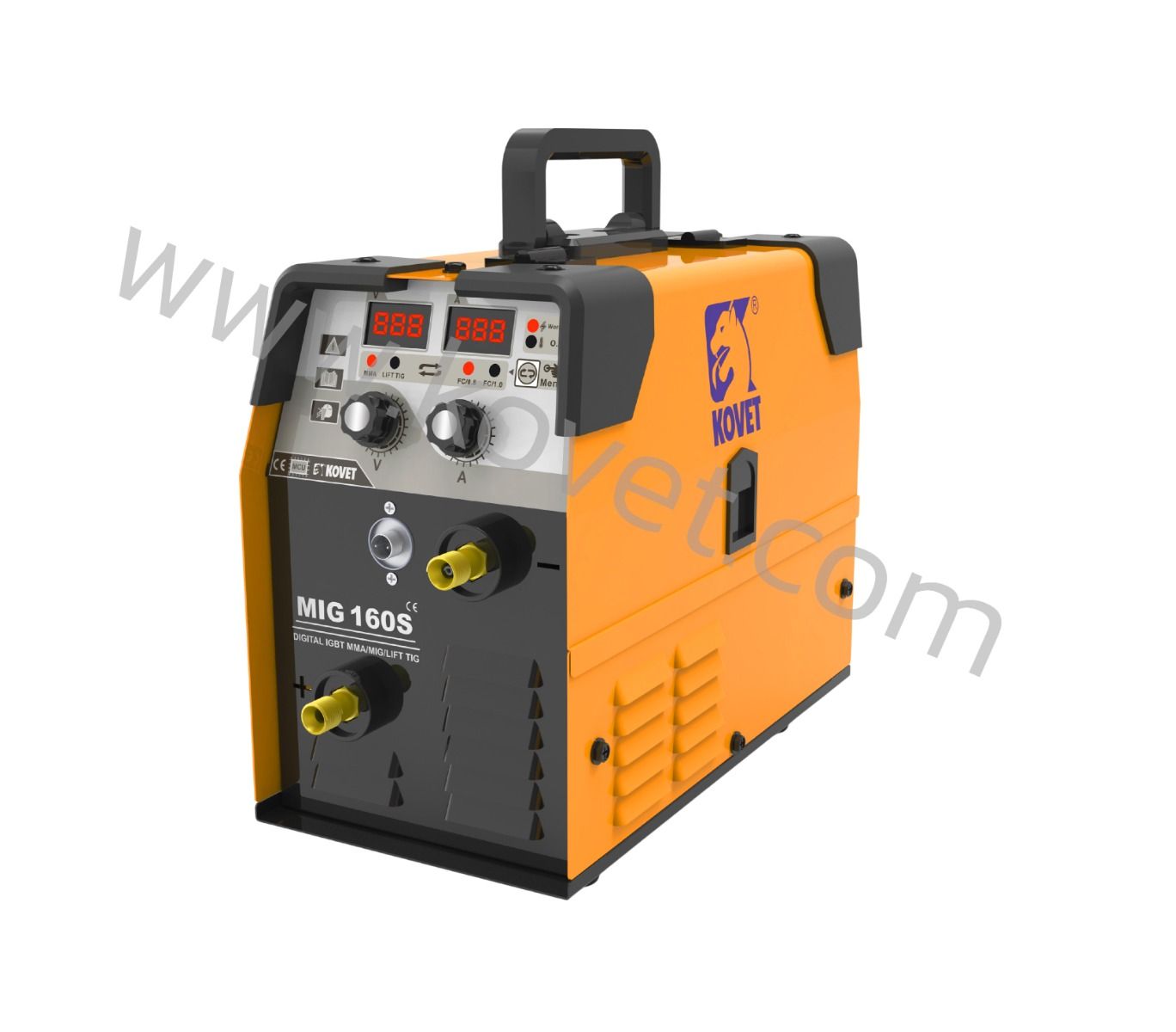

KOVET MIG-160S Plus-120A CO₂ MIG/MAG DC Welding Machine

More information / Request a quote
In stock
SKU:
WM07-MIG160S Plus+
  • Multi-process welding: MMA / MIG / Lift TIG (3-in-1)

  • Easy current adjustment with synergic control

  • Gasless MIG welding — no shielding gas required

KOVET MIG-160S Plus-120A CO₂ MIG/MAG DC Welding Machine
KOVET MIG-160S Plus-120A CO₂ MIG/MAG DC Welding Machine KOVET MIG-160S Plus-120A CO₂ MIG/MAG DC Welding Machine KOVET MIG-160S Plus-120A CO₂ MIG/MAG DC Welding Machine KOVET MIG-160S Plus-120A CO₂ MIG/MAG DC Welding Machine KOVET MIG-160S Plus-120A CO₂ MIG/MAG DC Welding Machine



  • A gasless metal welding machine designed for efficient and versatile operation.
    Built with advanced IGBT inverter technology for stable performance and energy efficiency.
  • 3-in-1 functionality: MMA / MIG / Lift TIG
  • Integrated wire feeder system
  • Easy current adjustment with synergic control system
  • High efficiency with low power consumption
  • Compact design, suitable for continuous operation
  • Stable and consistent welding current
  • Intelligent protection system against overvoltage and overheating
  • Digital display showing voltage and current
  • Stable and consistent wire feeding speed
  • Suitable for welding structural steel, alloy steel, and stainless steel



Standard Set — MIG-160S-2

  • 14AK+ MIG torch with 2-meter cable (factory-installed)

  • Ground clamp with 1-meter cable + THAI plug 10–25 mm² (1 set)

  • THAI plug 10–25 mm² + wrench

  • Gasless flux-cored wire E71T-GS 0.8 mm, 1 kg (1 spool)




Full Set — MIG-160S-1

  • 14AK+ MIG torch with 2-meter cable (factory-installed)

  • Ground clamp with 1-meter cable + THAI plug 10–25 mm² (1 set)

  • Electrode holder with 2-meter cable + THAI plug 10–25 mm² (1 set)

  • Gasless flux-cored wire E71T-GS 0.8 mm, 1 kg (1 spool)

_________________________________________________________





Standard Set — MIG-160S-4 PLUS+

1-Year Warranty

  • MIG torch 14AK with 2-meter cable (detachable) — 1 set

  • Ground clamp with 1-meter cable + THAI plug 10–25 mm² — 1 set

  • Hex key wrench — 1 set

  • Gasless flux-cored wire E71T-GS 0.8 mm, 1 kg — 1 spool

  • Anti-spatter spray 420 ml (KP-400) — 1 can


Full Set — MIG-160S-3 PLUS+

1-Year Warranty

  • MIG torch 14AK with 2-meter cable (detachable) — 1 set

  • Ground clamp with 1-meter cable + THAI plug 10–25 mm² — 1 set

  • Hex key wrench — 1 set

  • Gasless flux-cored wire E71T-GS 0.8 mm, 1 kg — 1 spool

  • Electrode holder 400A with 2-meter aluminum cable + black plug TH10-25 mm — 1 set

  • Anti-spatter spray 420 ml (KP-400) — 1 can



More Information
BrandsKOVET
Rate Primary VoltageAC220V (1 phase), ±15%, 50/60Hz
Rated Input Capacity (KVA)MIG : 3 || MMA : 3.8
Maximum Input Current (A)MIG : 13.6 || MMA : 17.3
Rated input current (A)MIG : 10 || MMA : 12.7
Output Current Range (A)MIG : 20 - 120 || MMA : 20 - 120
Output Voltage (V)MIG : 15 - 20 || MMA : 15 - 20
Max No-Load voltage (V)MIG : 52 || MMA : 52
Rate duty cycle at 60% (10min) MIG : 120A 20V || MMA : 120A 24.8V
Rate duty cycle at 100% (10min)MIG : 93A 18.7V || MMA : 93A 23.7V
No-load consumption (W)60
Spool electrode size (kg)1
Wire Feed Speed (m/min)18
Efficiency (%)85
Power Factor0.93
Insulation gradeF
Protection ClassIP21S
Electrode/ Wire/ Rod diameter (mm)0.8 - 1.0
Weight (kg)5.5
Dimension (LxWxH) (mm)310 x 140 x 240
Cable Length (m.)3
