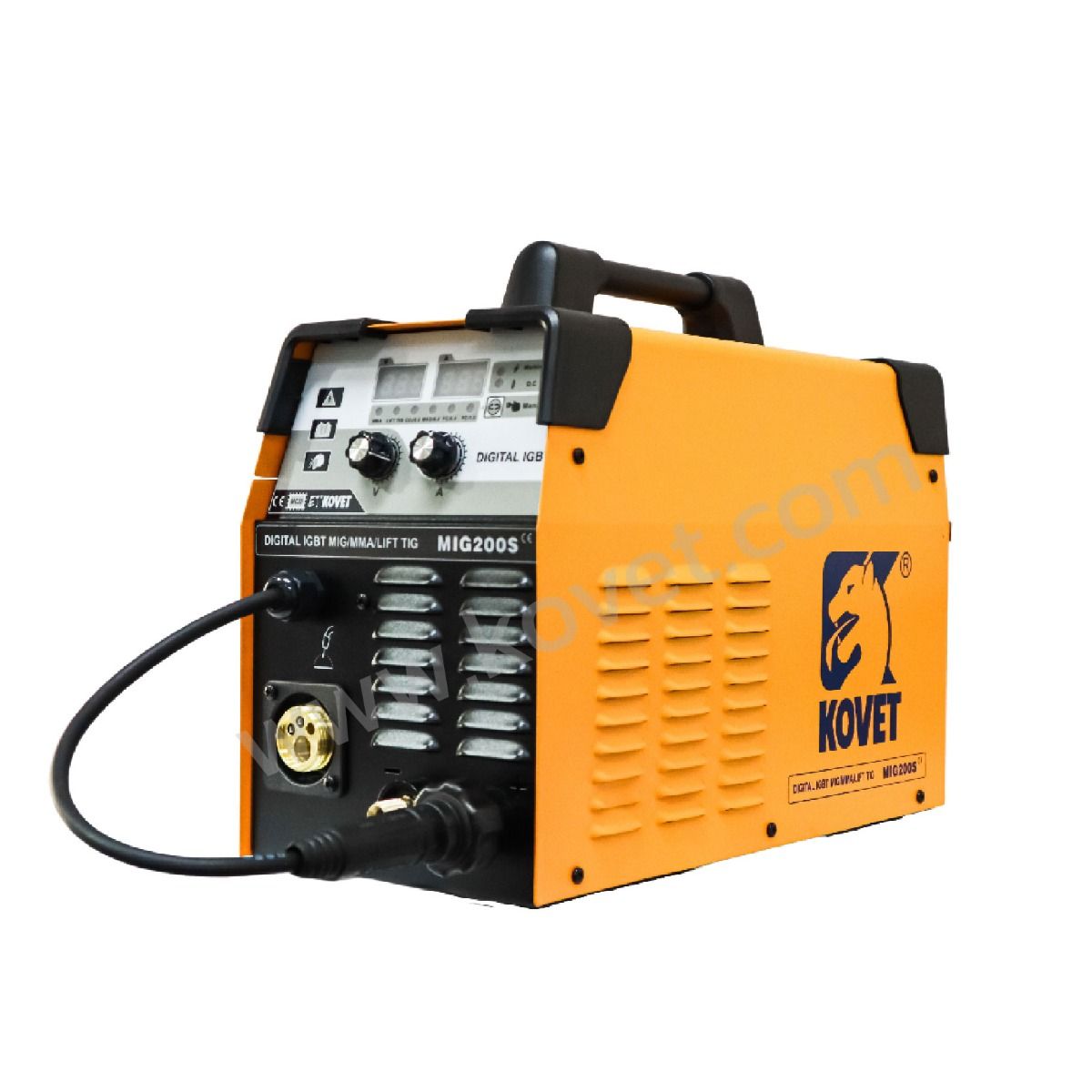

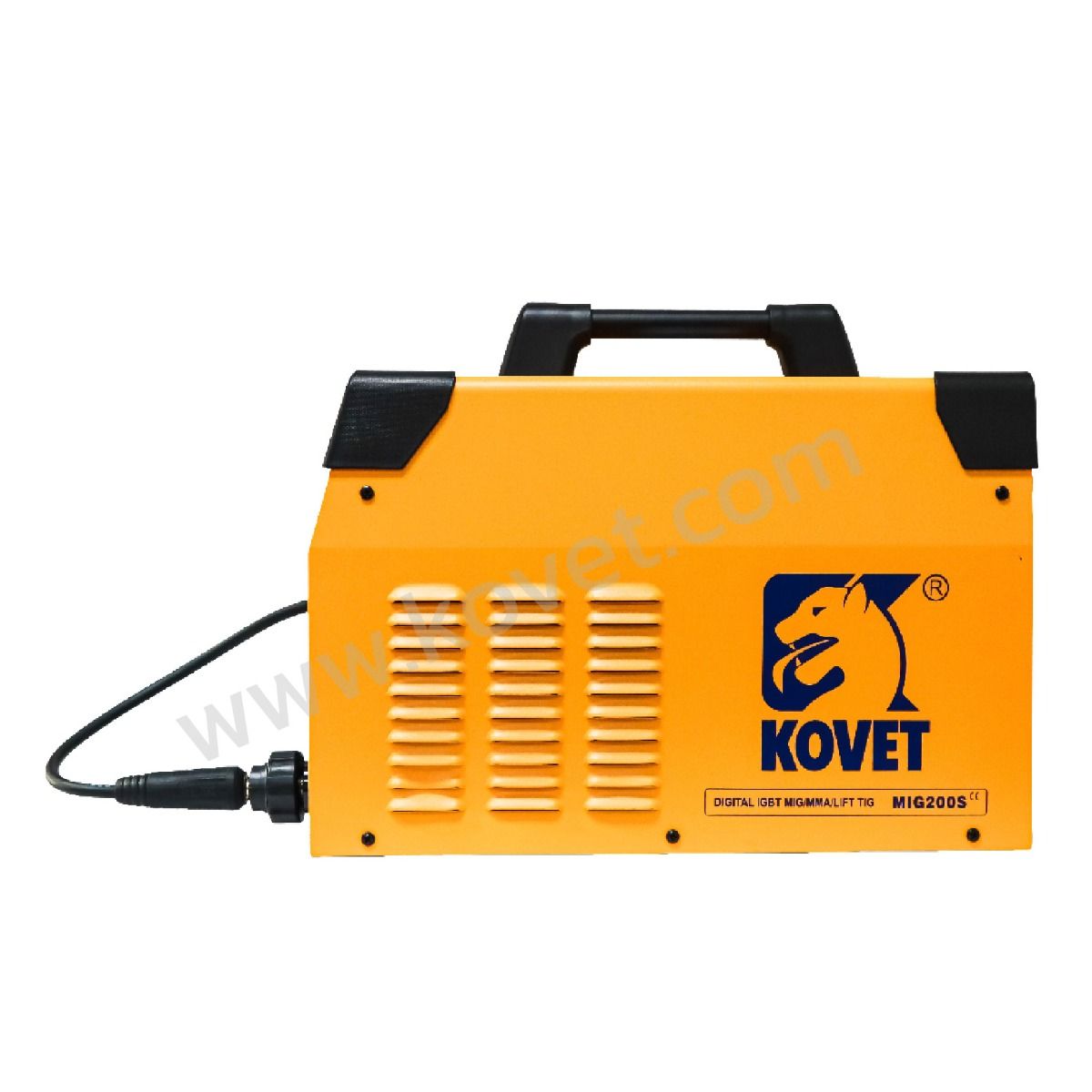

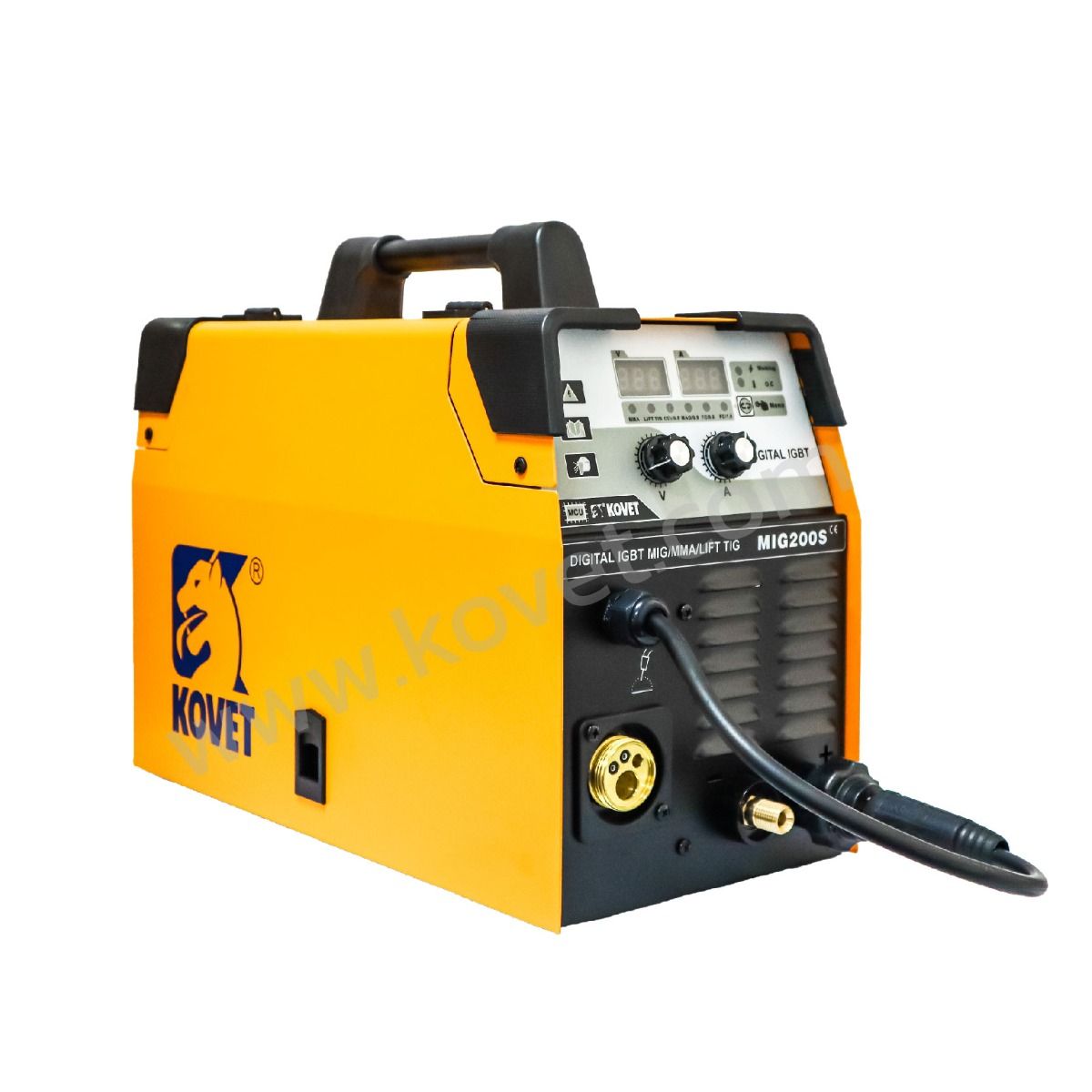

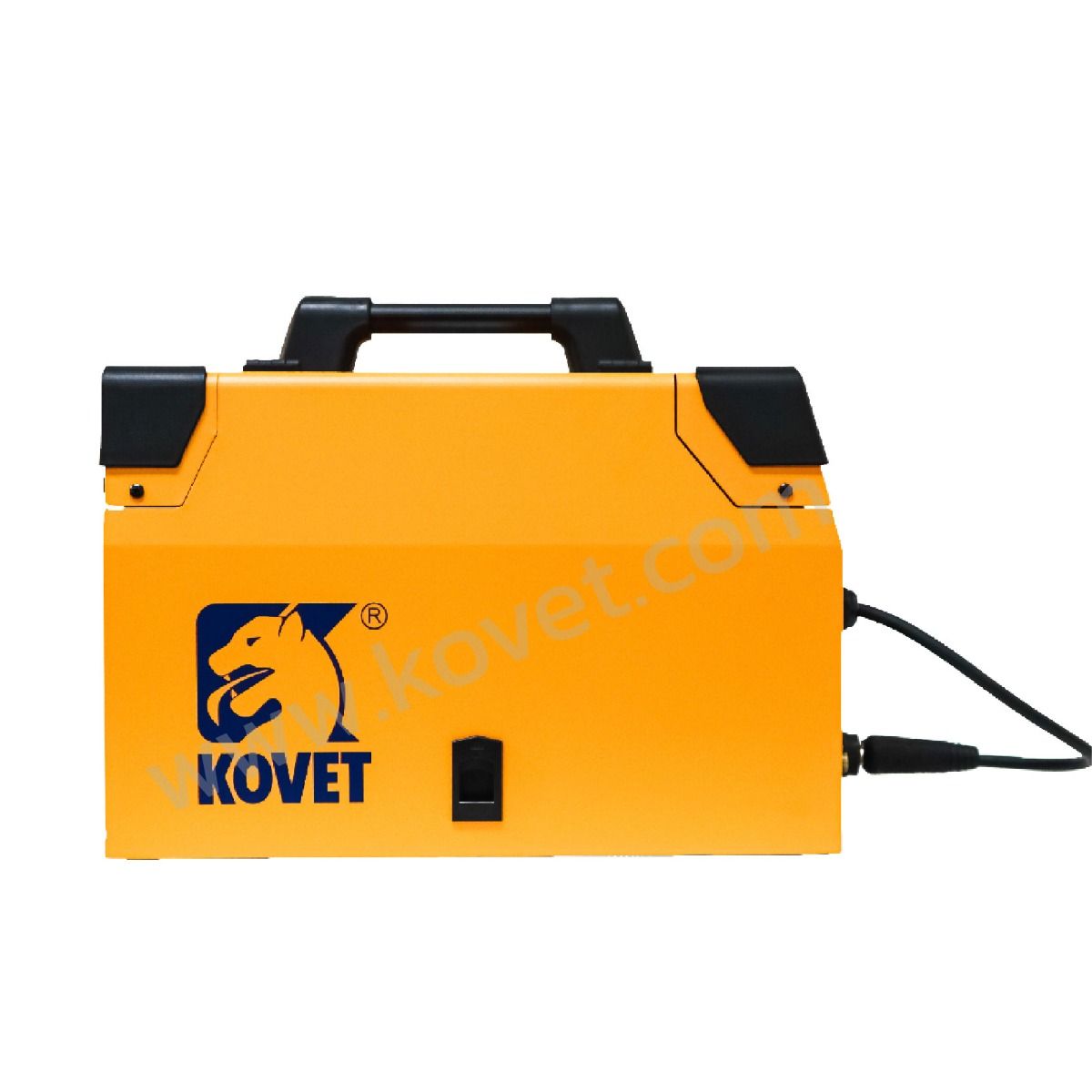

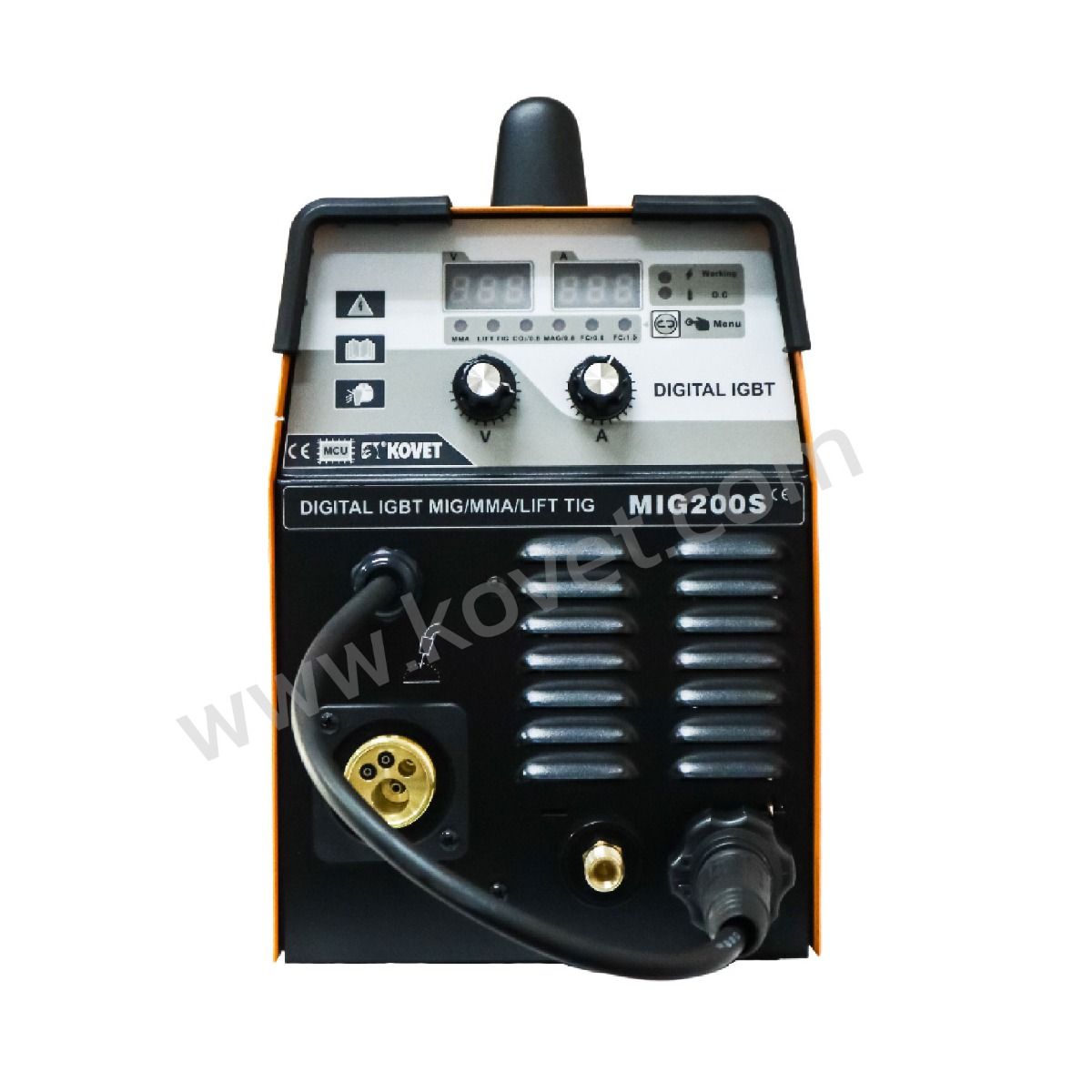

Inverter CO2 MIG/STICK ARC/LIFT TIG WELDER #MIG-200S

In stock
SKU:
WM07-MIG200S
  • Can be connected to many functions MMA,Lift-TIG,MIG/MMA.
  • Easy power adjustment No need to adjust the pressure to be difficult.
  • Suitable for DIY work.
ตู้เชื่อม CO2  160 แอมป์ MIG/MAG DC #MIG-200S
ตู้เชื่อม CO2  160 แอมป์ MIG/MAG DC #MIG-200S ตู้เชื่อม CO2  160 แอมป์ ตู้เชื่อม CO2 #MIG-200S ตู้เชื่อม CO2  160 แอมป์ MIG/MAG Inverter CO2  MIG/STICK ARC/LIFT TIG WELDER  #MIG-200S Inverter CO2  MIG/STICK ARC/LIFT TIG WELDER  #MIG-200S Inverter CO2  MIG/STICK ARC/LIFT TIG WELDER  #MIG-200S Inverter CO2  MIG/STICK ARC/LIFT TIG WELDER  #MIG-200S
  • Advanced IGBT inverter technology.
  • Dual welding process: MIG & MMA.
  • Arc Trait (Inductance) adjustable.
  • External wire feeder with voltage and current  adjustable.

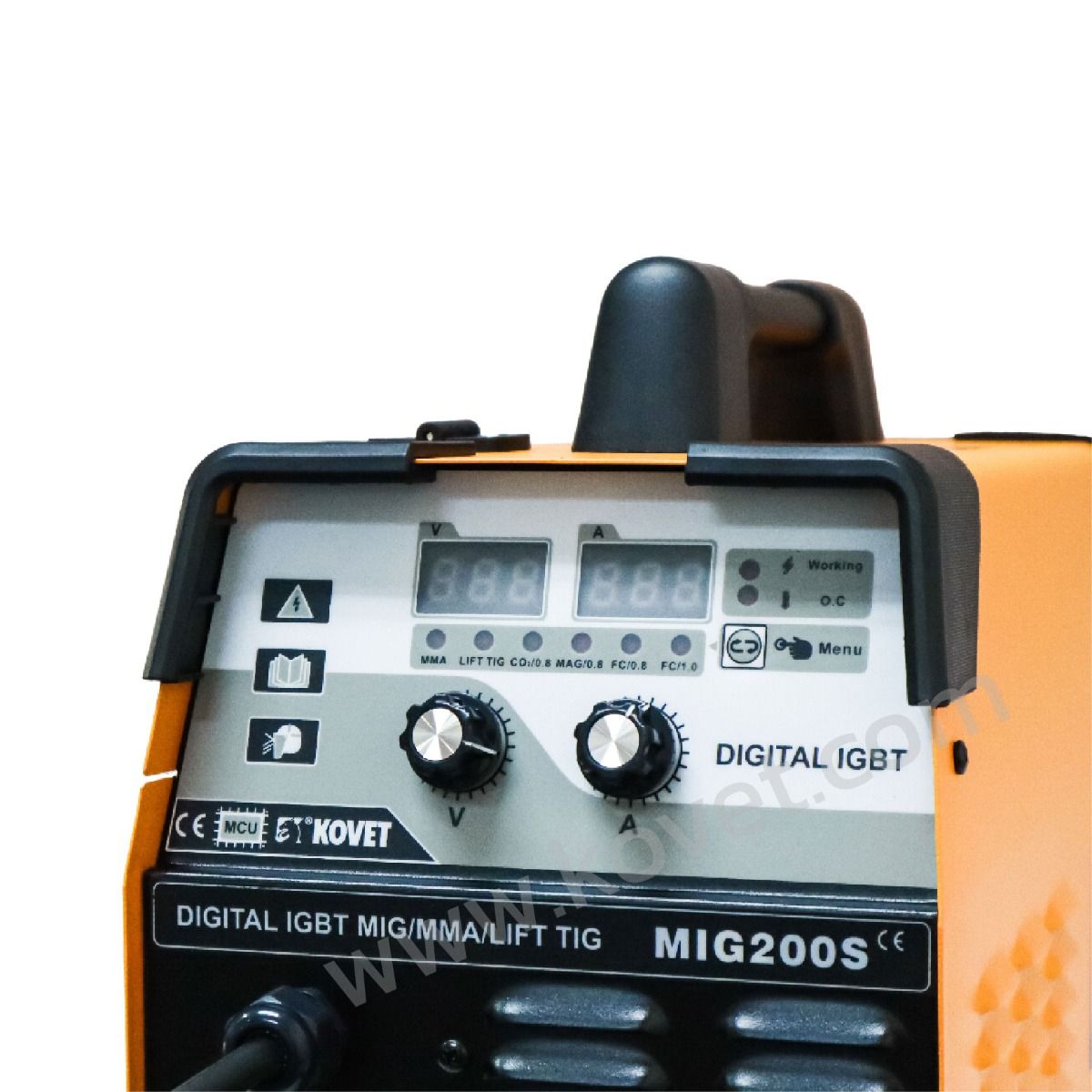

  • Digital Meters - Voltage and Amperage preview and hold capability.
  • Polarity change function to weld flux-cored self-shield wire as the front panel show.
  • Auto-Adaptive arc force and hot start current. (For MMA function)
  • Adapt to 1kg/5kg wire spool.
  • Dust-Free cooling system, enhance higher Duty Cycle.
  • Intelligent protection: over-voltage, over-loading and over-heating.
  • Power source with protect corner, more durable.
  • Function : MMA, LIFT TIG, CO2 0.8/1.0mm, FC 0.8/1.0mm, MAG 0.8/1.0mm.
More Information
Brands KOVET
Rate Primary Voltage AC220V (1 phase), ±15%, 50/60Hz
Rated Input Capacity (KVA) MIG : 4.5 || MMA : 5.4
Maximum Input Current (A) MIG : 22 || MMA : 26.4
Rated input current (A) MIG : 20.2 || MMA : 24.3
Output Current Range (A) MIG : 20 - 160 || MMA : 20 - 160
Output Voltage (V) MIG : 15 - 22 || MMA : 15 - 22
Max No-Load voltage (V) MIG : 52 || MMA : 52
Rate duty cycle at 60% (10min) MIG : 160A 26.4V || MMA : 160A 22V
Rate duty cycle at 100% (10min) MIG : 124A 25V || MMA : 124A 20.2V
No-load consumption (W) 60
Wire Feed Speed (m/min) 18
Efficiency (%) 85
Power Factor 0.93
Insulation grade F
Protection Class IP21S
Electrode/ Wire/ Rod diameter (mm) 0.8 / 1.0
Weight (kg) 9.8
Dimension (LxWxH) (mm) 400 x 195 x 270
Cable Length (m.) 3
