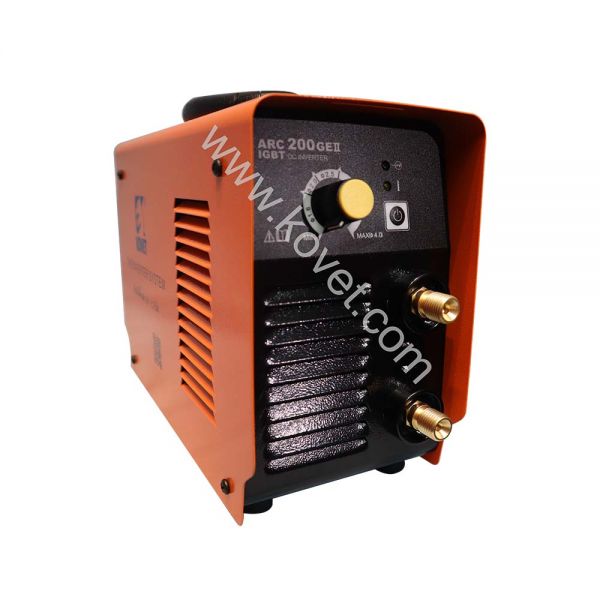

Inverter DC (MMA) Welding Machine #ARC-200GEII
In stock
SKU:
WM04-ARC200GEII
- Built In Microprocessor
- Use the latest high grade IGBT Inverter Technology
- VRD adjustable by press the stand by button for about 5s.
- Anti sticking, Arc force and Hot Start Function Built In, providing excellent experience in welding
- Intelligent protection for over-loading, over-voltage and over-heating
- Suitable for maintenance, installation, etc. indoor and outdoor requirements.
| Brands | KOVET |
|---|---|
| Rate Primary Voltage | AC220V (1 phase) ±15%, 50/60Hz |
| Rated Input Capacity (KVA) | 5.6 |
| Maximum Input Current (A) | 25.5 |
| Rated input current (A) | 11.4 |
| Output Current Range (A) | 40 - 140 |
| Output Voltage (V) | 21.6 – 25.6 |
| Max No-Load voltage (V) | 58 |
| Rate duty cycle at 20% (10min) | 140A 25.6V |
| Rate duty cycle at 60% (10min) | 81A 23.2V |
| Rate duty cycle at 100% (10min) | 63A 22.5V |
| Efficiency (%) | 86 |
| Power Factor | 0.65 |
| Insulation grade | F |
| Protection Class | IP21 |
| Electrode/ Wire/ Rod diameter (mm) | 2.0 – 3.2 |
| Material thickness (mm) | 2.0 - 5.0 |
| Weight (kg) | 3.4 |
| Dimension (LxWxH) (mm) | 290 x 123 x 216 |
| Cable Length (m.) | 2.5 |
