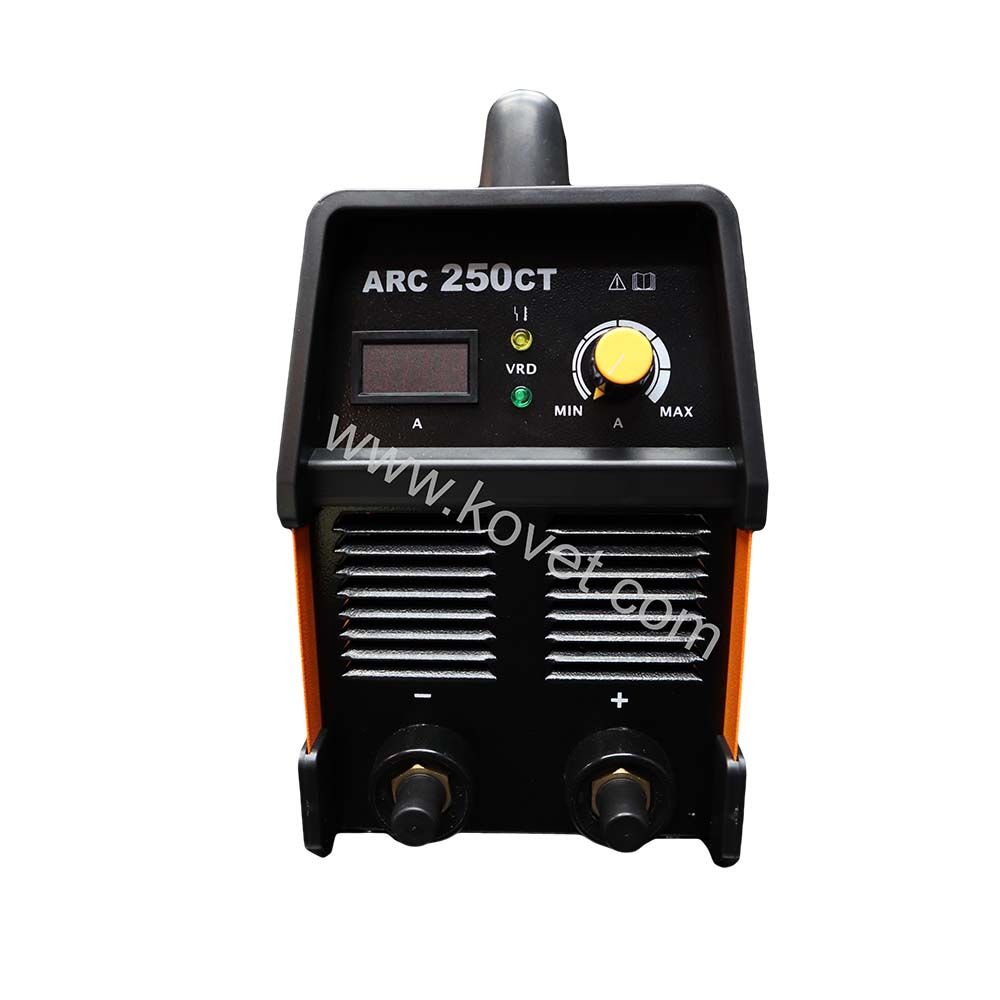

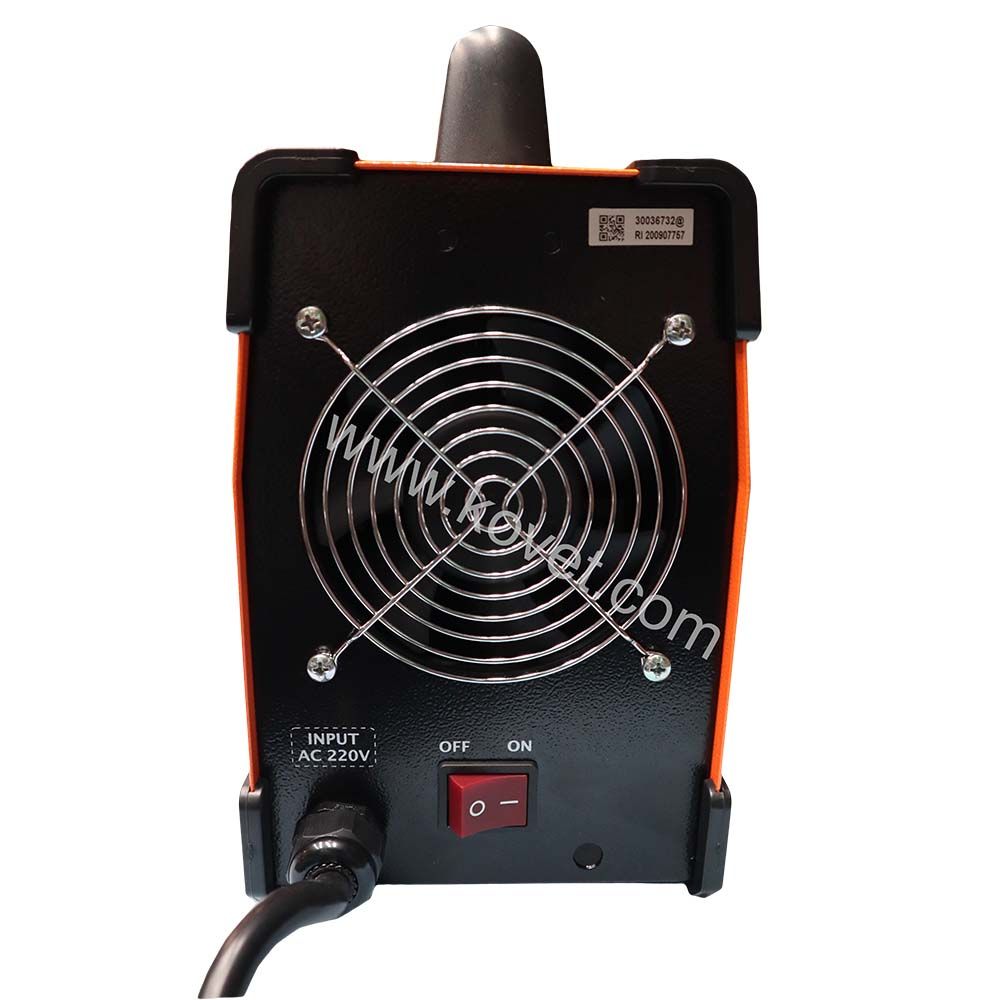

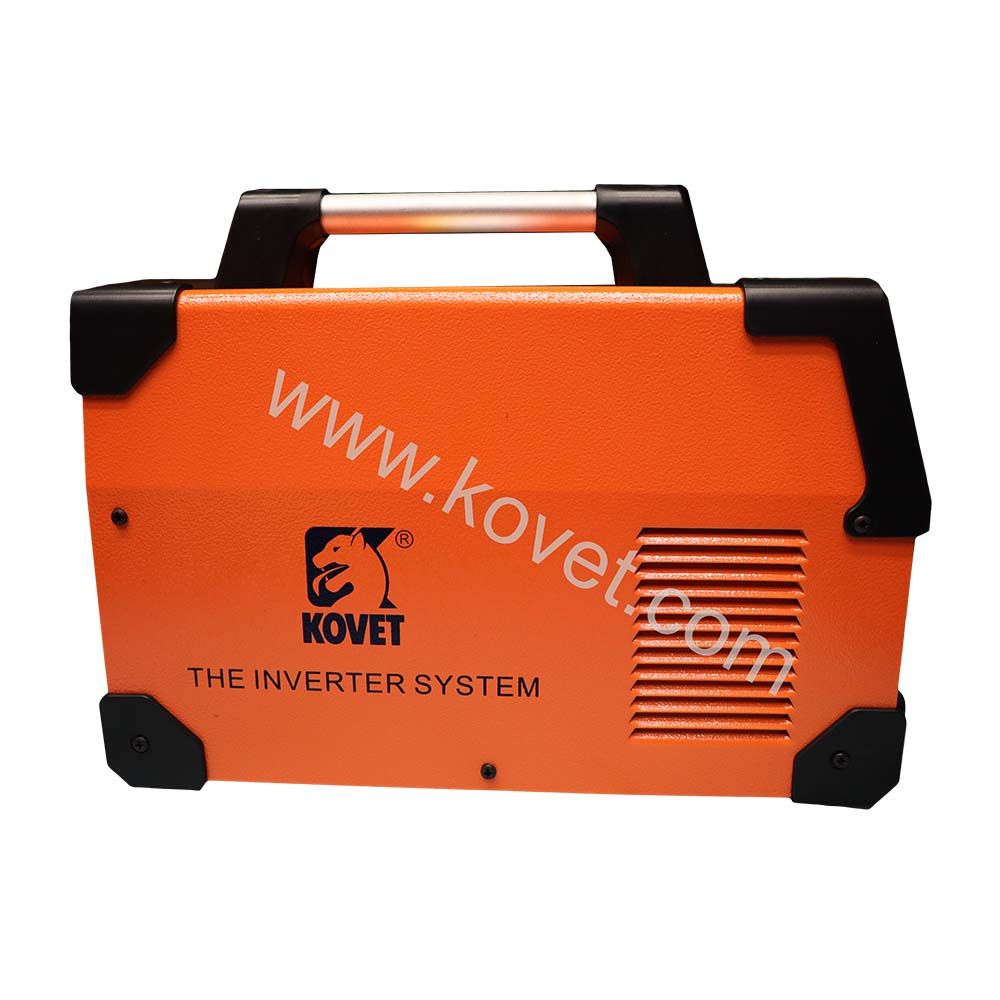

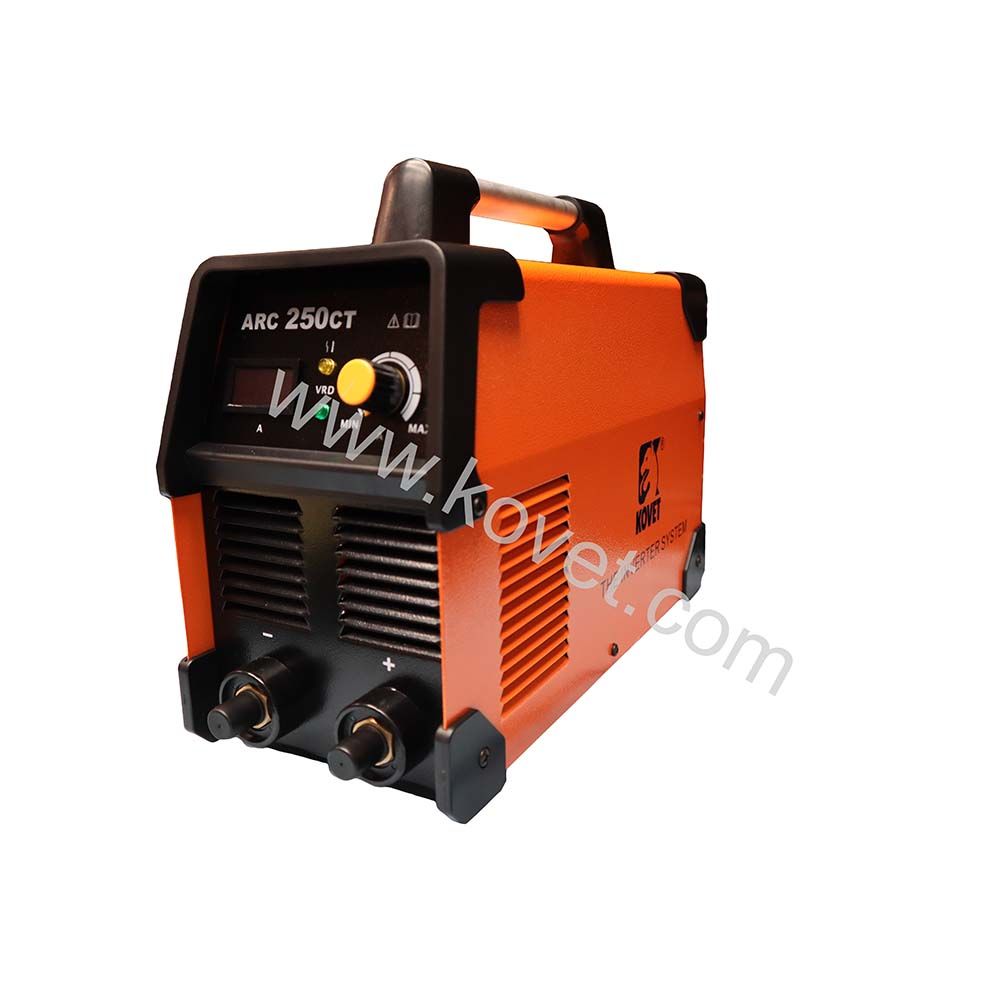

Inverter DC (MMA) Welding Machine #ARC-250CT
In stock
SKU:
WM04-ARC250CT
- This 100 KHz Inverter DC Stick welding machine employs MOSFET Technology.
- The plastic corner protection reduces potential scratches.
- It is designed to increase the weld quality even when welding at low current.
- It has automatic detection system for overloading and overheating.
- Consistent weld with reduced sparks.
- Energy efficient and portable with a strong handle.
- Suitable for welding metals and non-metals, steel, alloy, stainless steel and cast iron
- It can be used for varied applications, including repairs, construction and infrastructure projects.
| Brands | KOVET |
|---|---|
| Rate Primary Voltage | AC220V (1 phase), ±15%, 50/60Hz |
| Rated Input Capacity (KVA) | 9 |
| Maximum Input Current (A) | 41 |
| Rated input current (A) | 26.2 |
| Output Current Range (A) | 30 - 190 |
| Output Voltage (V) | 21.2 – 27.6 |
| Max No-Load voltage (V) | 70 |
| Voltage Reduction Device (V) | 18 |
| Rate duty cycle at 30% (10min) | 190A 27.6V |
| Rate duty cycle at 60% (10min) | 160A 26.4V |
| Rate duty cycle at 100% (10min) | 140A 25.6V |
| Efficiency (%) | 85 |
| Power Factor | 0.7 |
| Insulation grade | H |
| Protection Class | IP21S |
| Electrode/ Wire/ Rod diameter (mm) | 2.0 – 4.0 |
| Material thickness (mm) | 1.0 - 7.0 |
| Weight (kg) | 6.4 |
| Dimension (LxWxH) (mm) | 402 x 160 x 300 |
| Cable Length (m.) | 3 |
