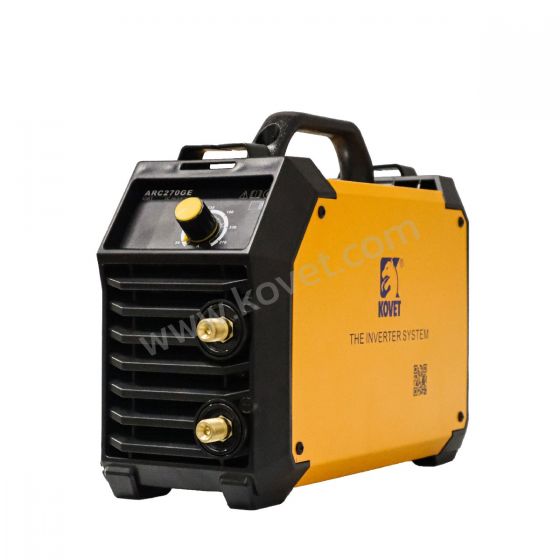

Inverter DC Stick (MMA) Welding Machine #ARC270GE
In stock
SKU:
WM04-ARC270GE
- Can be used in high places, open spaces, easy to install and use.
- Compact size, light weight, easy to carry.
- There is a shoulder strap for working at height.
- Use the highest quality INVERTER system technology to save energy.
- Provides a full welding current of 190 amps.
- Developed for welding efficiency, stability. Even when welding with low voltage current.
- There is a digital screen to display the welding current.
- Supports welding wire up to 4.0 mm.
- There is a system to protect against overcurrent, overload or
- over heat.
- Can be used in high places, open spaces, easy to install and use.
- Compact size, light weight, easy to carry.
- There is a shoulder strap for working at height.
| Brands | KOVET |
|---|---|
| Rate Primary Voltage | AC220V (1 phase), ±15%, 50/60Hz |
| Maximum Input Current (A) | 40.8 |
| Rated input current (A) | 22.3 |
| Output Current Range (A) | 35 - 190 |
| Output Voltage (V) | 21.4 - 27.6 |
| Max No-Load voltage (V) | 60 |
| Rate duty cycle at 30% (10min) | 190A 27.6V |
| Rate duty cycle at 60% (10min) | 160A 26.4V |
| Rate duty cycle at 100% (10min) | 140A 25.6V |
| Efficiency (%) | 85 |
| Power Factor | 0.65 |
| Insulation grade | F |
| Protection Class | IP21 |
| Electrode/ Wire/ Rod diameter (mm) | 2.0 - 4.0 |
| Material thickness (mm) | 1.0 - 12.0 |
| Weight (kg) | 3.5 |
| Dimension (LxWxH) (mm) | 325 x 140 x 230 |
| Cable Length (m.) | 2.5 |
