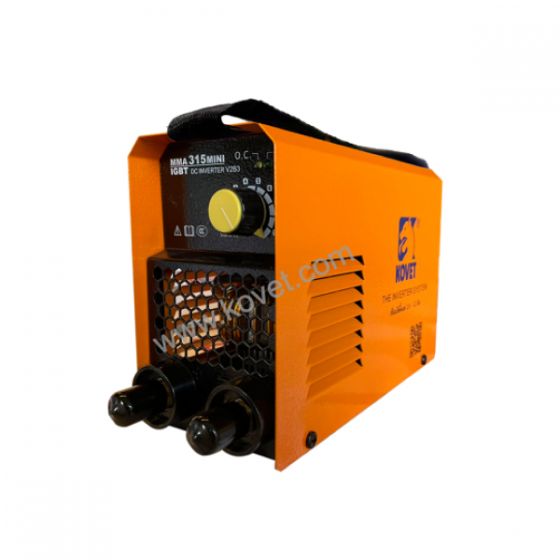

Inverter DC Stick (MMA) Welding Machine MMA315MINI

In stock
SKU:
WM04-MMA315MINI
  • Built In Microprocessor
  • Use the latest high grade IGBT Inverter Technology
  • VRD adjustable by press the stand by button for about 5s.
  • Anti sticking, Arc force and Hot Start Function Built In, providing excellent experience in welding
  • Intelligent protection for over-loading, over-voltage and over-heating
  • Suitable for maintenance, installation, etc. indoor and outdoor requirements.
Inverter DC Stick (MMA) Welding Machine MMA315MINI
Inverter DC Stick (MMA) Welding Machine MMA315MINI Inverter DC Stick (MMA) Welding Machine MMA315MINI Inverter DC Stick (MMA) Welding Machine MMA315MINI Inverter DC Stick (MMA) Welding Machine MMA315MINI Inverter DC Stick (MMA) Welding Machine MMA315MINI Inverter DC Stick (MMA) Welding Machine MMA315MINI Inverter DC Stick (MMA) Welding Machine MMA315MINI
  • Use  the latest high grade IGBT technology.
  • Intelligent protection for over - loading and over - heating.
  • Anti-stick function built-in, preventing  against over - loading the unit and easing removal of the electrode.
  • Non-stop welding for 2.6 mm. Electrode, can welding 3.2 mm. diameter electrode.
  • Compact size Easy to carry and convenient with shoulder strap.
  • Can be used for home welding, repair, installation and other work.
  • Suitable for home use, maintenance, installation, etc. requirements

This product is supplied with a full accessory kit including

  1. Earth clamp + cable
  2. Electrode holder + cable
More Information
Brands KOVET
Rate Primary Voltage AC220V (1 phase) ±15%, 50/60Hz
Rated Input Capacity (KVA) 5.8
Maximum Input Current (A) 26.5
Rated input current (A) 10.3
Output Current Range (A) 30 - 140
Output Voltage (V) 21.2 – 25.6
Max No-Load voltage (V) 54
Rate duty cycle at 15% (10min) 140A / 25.6V
Rate duty cycle at 60% (10min) 75A / 23V
Rate duty cycle at 100% (10min) 55A / 22.2V
Efficiency (%) 85
Power Factor 0.71
Insulation grade F
Protection Class IP21
Electrode/ Wire/ Rod diameter (mm) 2.0 - 3.2
Material thickness (mm) 1.0 - 5.0
Weight (kg) 2
Dimension (LxWxH) (mm) 204 x 87 x 146
Cable Length (m.) 2.5
