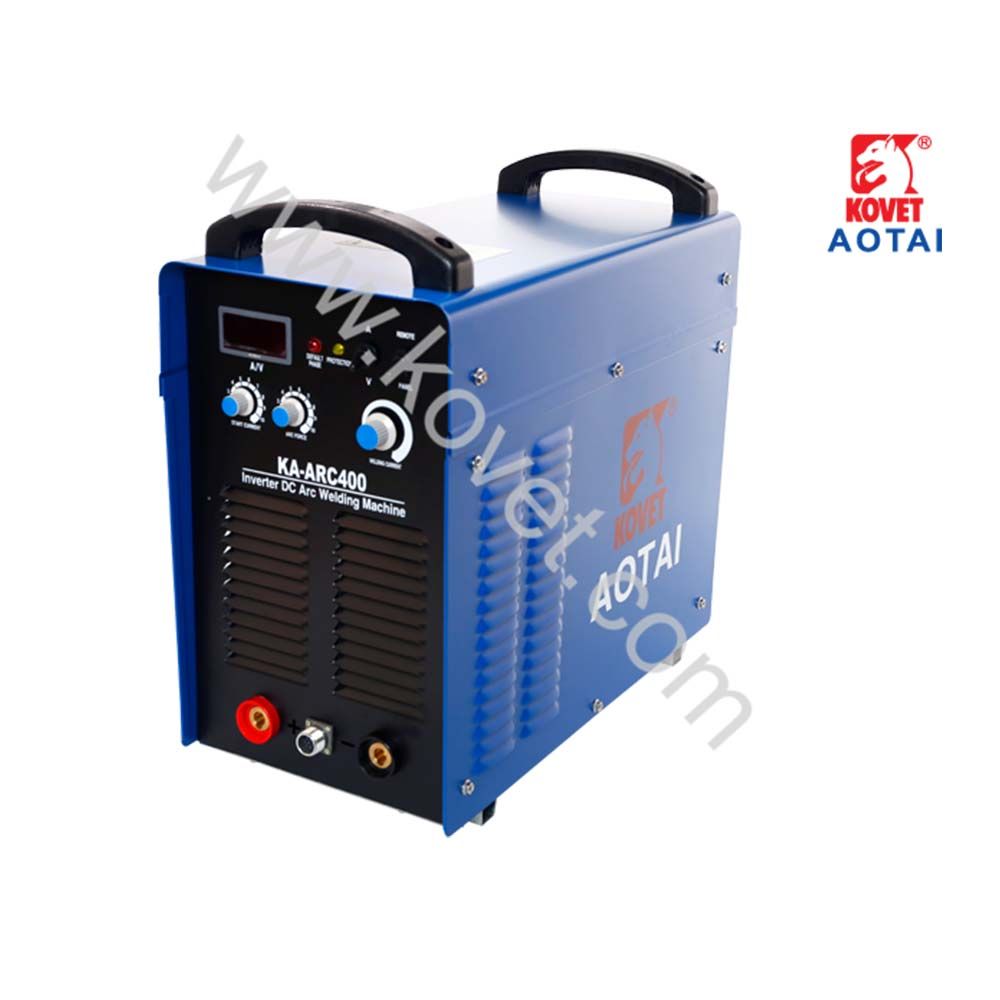

Inverter DC Stick (SMAW) / Gouging #KA-ARC400
In stock
SKU:
WM02-ARC400
- Suitable for Rutile and Basic electrodes
- Adjustable ARC FORCE and hot start
- Heavy duty cycle (up to 100%)
- Digital display
- Suitable for long distance welding (100m)
- Recommended areas of use: Shipbuilding and offshore engineering, Industry plant construction, Maintenance and repair, Pipeline industry
- Recommended base metals: Carbon steel, Alloy steel
- Mild steel welding capability: 1-32mm/0.04-1.26”, at 30-450A
- Stainless steel welding capability: 1-24mm/0.04-1.06”, at 30-450Optional:
- Work with generator
- Wire/wireless remote control
- VRD feature
| Brands | KOVET |
|---|---|
| Rate Primary Voltage | AC380V (3 phase), ±10%, 50/60Hz |
| Rated Input Capacity (KVA) | 18.4 |
| Maximum Input Current (A) | 28 |
| Rated input current (A) | 22 |
| Output Current Range (A) | 20 - 400 |
| Output Voltage (V) | 20.8 - 36 |
| Max No-Load voltage (V) | 68 |
| Rate duty cycle at 60% (10min) | 400A 36V |
| Rate duty cycle at 100% (10min) | 310A 32.4 |
| Efficiency (%) | 89 |
| Power Factor | 0.95 |
| Insulation grade | H |
| Protection Class | IP21S |
| Electrode/ Wire/ Rod diameter (mm) | 2.0 – 6.0 |
| Weight (kg) | 43 |
| Dimension (LxWxH) (mm) | 576 x 297 x557 |
| Cable Length (m.) | 3 |
