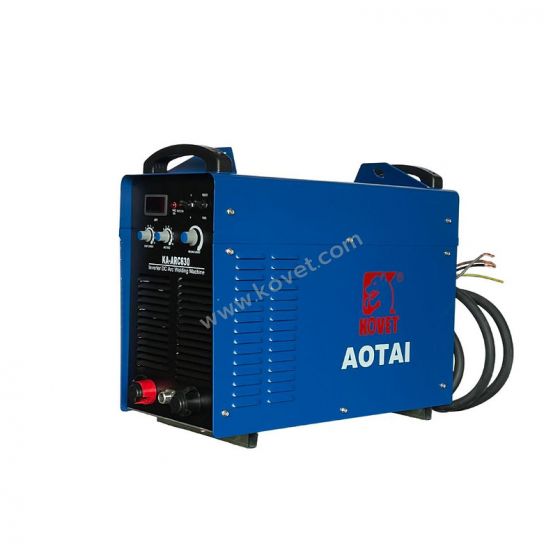

Inverter DC Stick (SMAW) / Gouging #KA-ARC630
In stock
SKU:
WM02-ARC630
- Suitable for BAS & RUT electrodes welding
- Hot arc starting current enjoys stepless adjustment and 100% arc starting success rate
- The continuously adjustable arc force in MMA mode provides effects of anti stick, unbroken arc and ensures stable arc for long cable welding
- The current and voltage enjoy digital display
- Wired remote control and optional wireless control
- Protection against overheat, over-current and over-voltage
- Optional VRD function
- Welding cable can reach as long as 100m
- Efficiency can reach up to 89%
| Brands | KOVET |
|---|---|
| Rate Primary Voltage | AC380V (3 phase), ±10%, 50/60Hz |
| Rated Input Capacity (KVA) | 27.7 |
| Rated input current (A) | 52 |
| Output Current Range (A) | 50 - 630 |
| Output Voltage (V) | 22 – 44 |
| Max No-Load voltage (V) | 96 |
| Rate duty cycle at 15% (10min) | 630A 44V |
| Rate duty cycle at 100% (10min) | 630A 44 |
| Efficiency (%) | 89 |
| Power Factor | 0.95 |
| Insulation grade | H |
| Protection Class | IP21S |
| Electrode/ Wire/ Rod diameter (mm) | 2.0 – 6.0 |
| Weight (kg) | 58 |
| Dimension (LxWxH) (mm) | 686 x 322 x 584 |
| Cable Length (m.) | 3 |
