$1,653.00

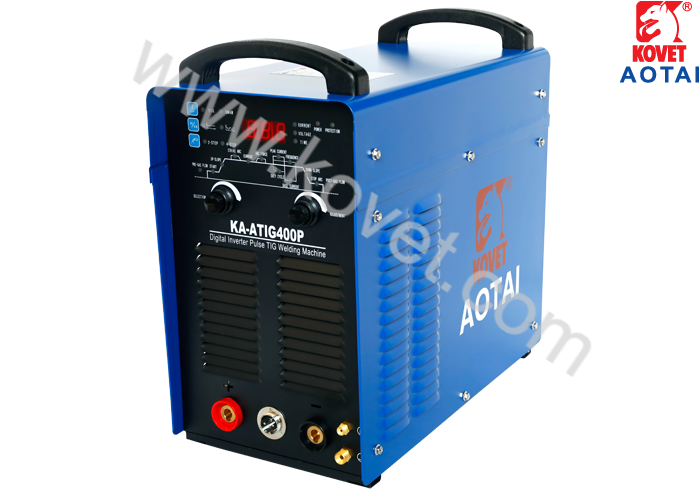

Digital DC Pulsed TIG (GTAW-P) / Stick (SMAW) / DC TIG (GTAW) Welding Machine #KA-ATIG400P
In stock
SKU:
WM02-ATIG400P
- 2 step / 4 step
- MCU Control
- Multi-parameters adjustment
- Digital display
- Self diagnostic
- High speed pulse
- Recommended application: Bicycle, fitness equipment, stainless furniture, Industry plant construction, Containers manufacture, Maintenance and repair, Pipeline industry, Shipbuilding
- Recommended base metals: Carbon steel, Alloy steel, Stainless steel, Titanium, Copper
- Mild steel welding capability: 0.3-23mm/0.01-0.91”, at 15-350A
- Stainless steel welding capability: 0.3-27mm/0.01-1.06”, at 15-240A
- Wire/wireless remote control
| Brands | KOVET |
|---|---|
| Rate Primary Voltage | AC380V (3 phase), ±10%, 50/60Hz |
| Rated Input Capacity (KVA) | 17.8 |
| Maximum Input Current (A) | 27 |
| Rated input current (A) | 21 |
| Output Current Range (A) | TIG : 15 - 395 || MMA : 5 - 395 |
| Output Voltage (V) | TIG : 20.6 - 35.8 || MMA : 10.2 - 25.8 |
| Max No-Load voltage (V) | TIG : 81 || MMA : 76 |
| Rate duty cycle at 60% (10min) | TIG : 395A 35.8V || MMA : 395A 25.8V |
| Rate duty cycle at 100% (10min) | TIG : 315A 32.6V || MMA : 315A 22.6V |
| Efficiency (%) | 89 |
| Power Factor | 0.95 |
| Insulation grade | H |
| Protection Class | IP21S |
| Electrode/ Wire/ Rod diameter (mm) | 2.0 - 6.0 |
| Material thickness (mm) | 1.0 - 4.0 |
| Weight (kg) | 50 |
| Dimension (LxWxH) (mm) | 600 x 310 x 550 |
| Cable Length (m.) | 3 |
