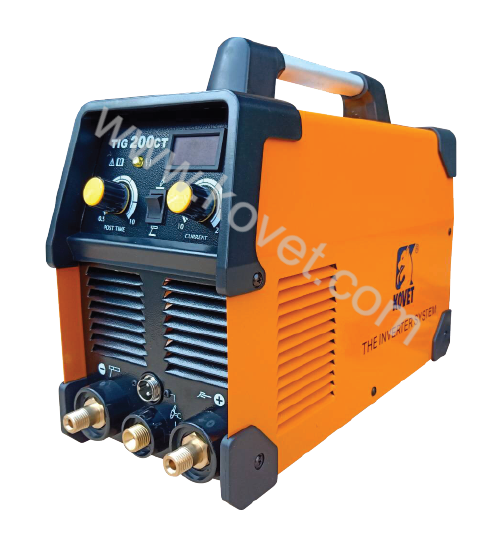

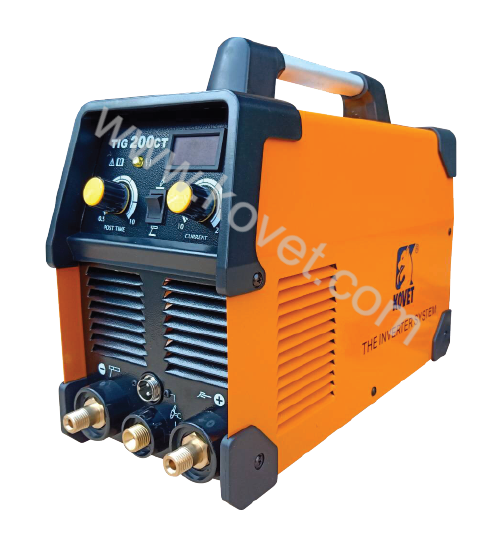

Inverter DC TIG Welding Machine #TIG-200CT

In stock
  • The KOVET inverter DC TIG welding machine employs advanced inverter technology delivers superior TIG performance.
  • Un-touch start DC TIG operation allows you to strike the arc easily with high frequency, and makes it easy to establish an arc under a variety of conditions.
  • Automatic HOT START boosts the current during starting to make striking an arc easier.
  • Integral gas and power connector for simple torch connections and quick changes between TIG and stick welding.
  • Wide range input voltage: 220V +/- 15%
  • Energy saving, compared with the traditional TIG machine more efficient.
Inverter DC TIG Welding Machine #TIG-200CT
Inverter DC TIG Welding Machine #TIG-200CT Inverter DC TIG Welding Machine #TIG-200CT
More Information
Brands KOVET
Rate Primary Voltage AC220V (1 phase), +/-15%, 50/60Hz
Rated Input Capacity (KVA) 6.8
Maximum Input Current (A) TIG : 26 MMA : 31.2
Rated input current (A) TIG : 20.1 MMA : 24.2
Output Current Range (A) TIG : 10 - 200 MMA : 10 - 155
Output Voltage (V) TIG : 10.4 - 18 MMA : 20.4 - 26.2
Max No-Load voltage (V) TIG : 58 MMA : 58
Voltage Reduction Device (V) TIG : 16.5 MMA : 16.5
Rate duty cycle at 60% (10min) TIG : 200A 18V MMA : 155A 26.2V
Rate duty cycle at 100% (10min) TIG: 165A 16.6V MMA : 140A 25.6V
Efficiency (%) 80
Power Factor 0.73
Insulation grade F
Protection Class IP21S
Electrode/ Wire/ Rod diameter (mm) 1.6 - 4.0
Material thickness (mm) < 4
Weight (kg) 6.5
Dimension (LxWxH) (mm) 402 x 160 x 300
Cable Length (m.) 3
