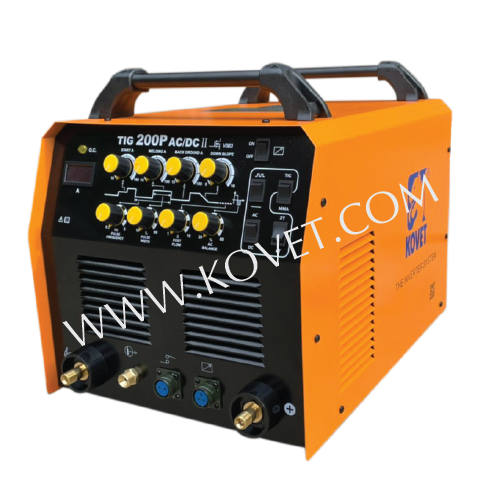

Inverter AC/DC TIG Welding Machine #TIG200PAC/DC II
In stock
SKU:
WM04-TIG200PADII
- The mature MOSFET inverter technology.
- Multi-function, TIG and MMA.
- Current and gas post time adjustable, enrich controlling ways of welding shape.
- 2T/4T function, abundant modes to service various welding demands.
- Arc striking current/ peak current/ base current adjustable, all for welding with better performance.
- Current upslope time/ current downslope time adjustable, the reliable protection for welding shape.
- Pulse frequency adjustable, different pulse frequency lead to different welding shape to meet demands.
- Pulse duty ratio/ pulse width clean/ post gas adjustable, abundant ways to control welding process.
- Intelligent protection: over-heating, over-current, over-voltage protection, convoy for the welder to keep power.
| Brands | KOVET |
|---|---|
| Rate Primary Voltage | AC220V (1 phase), ±15%, 50/60Hz |
| Rated Input Capacity (KVA) | 6.6 |
| Maximum Input Current (A) | TIG : 30 || MMA : 30 |
| Rated input current (A) | TIG : 16.4 || MMA : 16.4 |
| Output Current Range (A) | TIG : 10 - 190 || MMA : 10 - 150 |
| Output Voltage (V) | TIG : 10.4 - 17.6 || MMA : 20.4 - 26 |
| Max No-Load voltage (V) | TIG : 45 || MMA : 45 |
| Rate duty cycle at 30% (10min) | TIG : 190A 17.6V || MMA : 150A 26V |
| Rate duty cycle at 60% (10min) | TIG : 134A 15.4V || MMA : 106A 24.2V |
| Rate duty cycle at 100% (10min) | TIG : 104A 14.2V || MMA : 82A 23.3V |
| Wire Pulse (%) | 10 - 90 |
| Efficiency (%) | 80 |
| Power Factor | 0.73 |
| Insulation grade | F |
| Protection Class | IP21S |
| Electrode/ Wire/ Rod diameter (mm) | 1.6 – 4.0 |
| Material thickness (mm) | < 4 |
| Weight (kg) | 14.2 |
| Dimension (LxWxH) (mm) | 476 x 340 x 402 |
| Cable Length (m.) | 3 |
