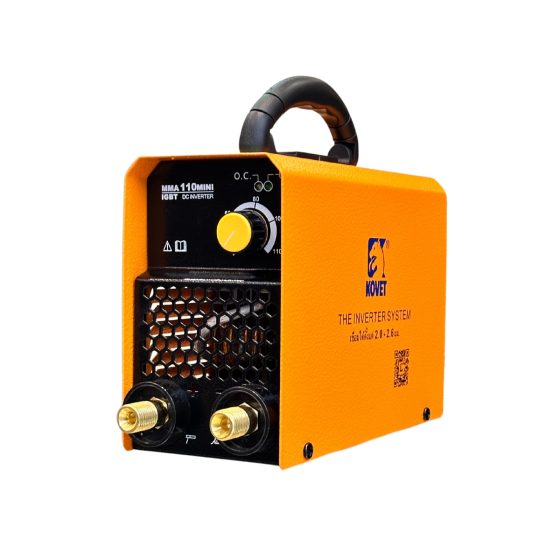

ตู้เชื่อมไฟฟ้า KOVET รุ่น MMA110mini #MMA-110mini
More information / Request a quote
In stock
SKU:
WM04-MMA110MINI
Compact IGBT welding machine with intelligent protection and Anti-Stick function. Lightweight, portable, and ideal for home use, repairs, installations, and general welding applications.
Inverter DC Stick (MMA) Welding Machine
- Powered by advanced IGBT technology for maximum performance and reliability
- Intelligent protection system prevents overloading and overheating
- Anti-Stick function helps prevent the welding electrode from sticking to the workpiece
- Compact and lightweight design for easy portability; includes a shoulder strap for convenient carrying
- Suitable for home welding, repair, installation, and general maintenance work
- Supports long, continuous welding using 2.6 mm welding electrodes
- Maximum output current: 110A
- Actual welding current range: 30–110A
Standard Accessories
• Electrode holder with 1.5 m cable + THAI plug 10–25 mm² (1 set)
• Ground clamp with 1 m cable + THAI plug 10–25 mm² (1 set)
• Standard welding mask (1 piece)
• Chipping hammer with welding brush (1 piece)
| Brands | KOVET |
|---|---|
| Rate Primary Voltage | AC220V (1 phase), ±20%, 50/60Hz |
| Maximum Input Current (A) | 22 |
| Rated input current (A) | 9.8 |
| Output Current Range (A) | 30 - 110 |
| Max No-Load voltage (V) | 60 |
| Rate duty cycle at 20% (10min) | 110A 24.4V |
| Rate duty cycle at 60% (10min) | 95A 23.8V |
| Rate duty cycle at 100% (10min) | 90A 23.6V |
| Efficiency (%) | 85 |
| Power Factor | 0.71 |
| Insulation grade | F |
| Protection Class | IP21 |
| Electrode/ Wire/ Rod diameter (mm) | 2.0 - 2.6 |
| Weight (kg) | 1.5 |
| Dimension (LxWxH) (mm) | 204 x 87 x 146 |
| Cable Length (m.) | 2.5 |
