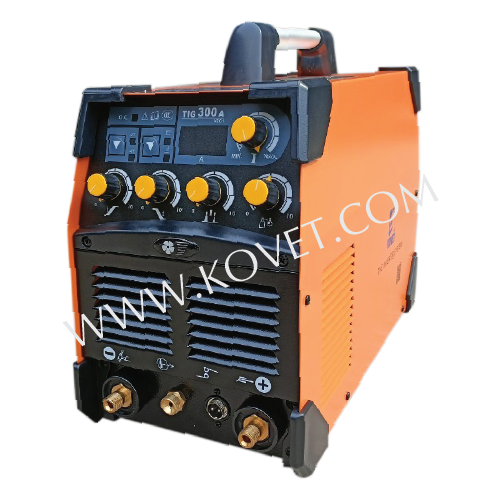

Inverter DC TIG (GTAW) Welding Machine TIG #TIG-300A
In stock
SKU:
WM04-TIG300A
- DEVOTED IN WELDING STAINLESS STEEL
- New technology to maximizing thermal dissipation with 4 Separated heat sinks.
- 2T/4T
- Post-flow adjustable.
- Up-slope and down-slope adjustable.
- Arc force adjustable.
- The success rate of arc striking is up to more than 99%
| Brands | KOVET |
|---|---|
| Rate Primary Voltage | AC220V (1 phase), +/-15%, 50/60Hz |
| Rated Input Capacity (KVA) | 11.5 |
| Maximum Input Current (A) | TIG : 52 || MMA : 49 |
| Rated input current (A) | TIG : 28 || MMA : 26 |
| Output Current Range (A) | TIG : 10 - 300 || MMA : 20 - 230 |
| Output Voltage (V) | TIG : 10.4 - 22 || MMA : 20.6 - 29.2 |
| Max No-Load voltage (V) | TIG : 15 || MMA : 60 |
| Rate duty cycle at 30% (10min) | TIG : 300A 22V || MMA: 230A 29.2V |
| Rate duty cycle at 60% (10min) | TIG : 212A 18.5V || MMA : 162A 26.5V |
| Rate duty cycle at 100% (10min) | TIG : 164A 16.5V || MMA : 125A 25V |
| Efficiency (%) | 70 |
| Power Factor | 0.82 |
| Insulation grade | F |
| Protection Class | IP21S |
| Electrode/ Wire/ Rod diameter (mm) | 1.6 - 4.0 |
| Material thickness (mm) | < 6 |
| Weight (kg) | 11.5 |
| Dimension (LxWxH) (mm) | 472 x 230 x 357 |
| Cable Length (m.) | 3 |
